    EUIMID Migration: How To

    Overview

  • Existing hardware identifiers, ESN (Electronic Serial Number) and UIMID (User Identity Module Identifier), are almost completely depleted
  • A replacement mobile device hardware identifier is available – MEID (Mobile Equipment Identifier)
  • A replacement RUIM (Removable User Identification Module) identifier is available – EUIMID (Expanded UIMID)
  • Networks need to be upgraded to support these new identifiers
  • New devices, such as phones and RUIMs must be capable of supporting these new identifiers
  • Operators must provision phones, RUIMs, back office systems and network databases with the new identifiers
  • New Identifier: EUIMID

  • EUIMID – New identifier designed to address the exhaust of the UIMID resource
  • Two different formats of EUIMID
    • Short Form EUIMID (SF_EUIMID)
      – Share the same address space as the MEID. RUIM card manufacturers are allocated MEID manufacturer codes in the same manner, and from the same range, as handset manufacturers
    • Long Form EUIMID (LF_EUIMID)
      – This is equal to the value of the ICCID of the card

  • SF_EUIMID: Short Form EUIMID

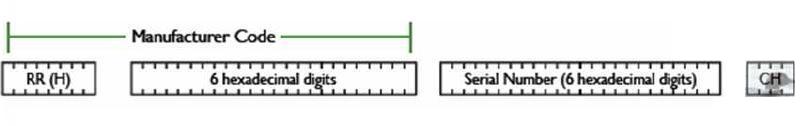

    SF_EUIMID – 56 bits identifier based on the MEID format

    When the SF_EUIMID is used, bit 2 of the Usage Indicator describes whether the SF_EUIMID of the card replaces the MEID of the device wherever it is used

    It is recommended that RUIMs be provisioned to provide not only a pUIMID but also the SF_EUIMID to override the phone’s MEID. This will, however, not allow EIR (Equipment Identity Register) capabilities

    Advantages Disadvantages
    • Familiarity
      - SF_EUIMID represents a minimum change from current operation, where the UIMID overrides the device ESN

    • Retrievable
      - Available from MS in either the Status Response Message, or the Extended Protocol Capability Response Message (both methods require the device itself to have an MEID)

    • Common Identifier
      - Both the card and device can be managed by a commonly formatted and administered 56 bit identifier

    • Card requirement
      - Cards which do not support SF_EUIMID will not be able to override the device MEID

    • Stolen Phone
      - Device MEID is unlikely to be transmitted to the network, it is not possible to take advantage of the new X.S0008 CheckMEID operation to track lost/stolen phones through communications with an EIR







    LF_EUIMID: Long Form EUIMID

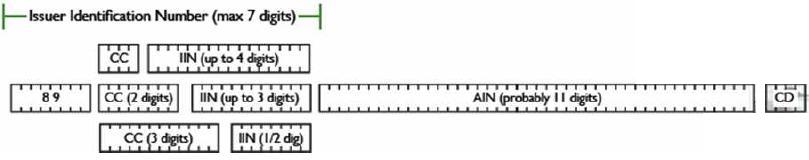

    LF_EUIMID – 72 bits identifier based on the ICCID format

    The ICCID already exists on all RUIMs for all technologies

    Advantages Disadvantages
    • Simplicity
      - ICCID already existed in the card
      - No new storage requirements in terms of files on the RUIM to support LF_EUIMID
      - Administration procedures are already established for ICCID

    • Backward compatibility
      - As no new data structure, current cards (that may not support C.S0023-C) can simply have pUIMID programmed into the EFRUIMID file on the cards

    • EIR Support
      - Device MEID remains available to the network, use of LF_EUIMID allows the implementation of an Equipment Identity Register to track/block lost/stolen device

    • Not retrievable
      - This can have impact on OTASP session, where there may be a need to receive a unique card identifier in order to access card specific information
      - New standards is currently in progress to retrieve the LF_EUIMID over the air

    • Long Identifier
      - 72 bit ICCID, if used to track the card, will require separate handling from the device MEIDs

    • Manufacturer Code Limitations
      - Countries with 3 digit telephony country codes are restricted to only 100 unique manufacturer codes. 2 digits – 1000, 1 digit – 10,000




    pUIMID (Pseudo-UIMID)


    pUIMID – A 32 bits identifier derived from EUIMID (either Short or Long Form), used in place of the UIMID

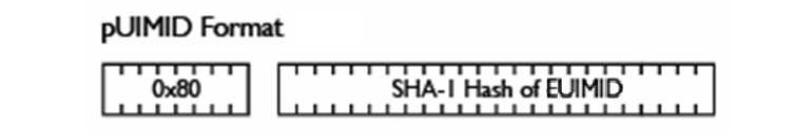

    pUIMID consists of an 8 bit reserved manufacturer’s code (Hex 80) and a 24 bit hashed EUIMID

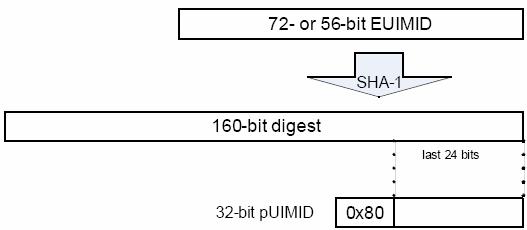

    Derivation of the pUIMID



    Provide 16,777,216 pUIMID from this method

    The pUIMID is derived from the EUIMID in the same manner as the pESN is derived from the MEID (therefore shares the same space as the pESN)


    Authentication

    Authentication is performed on the basis of the pUIMID.

    The SF_EUIMID, if included, will not be used for authentication calculations.

    A-KEY checksum calculations should use the pUIMID as an input for verification.
